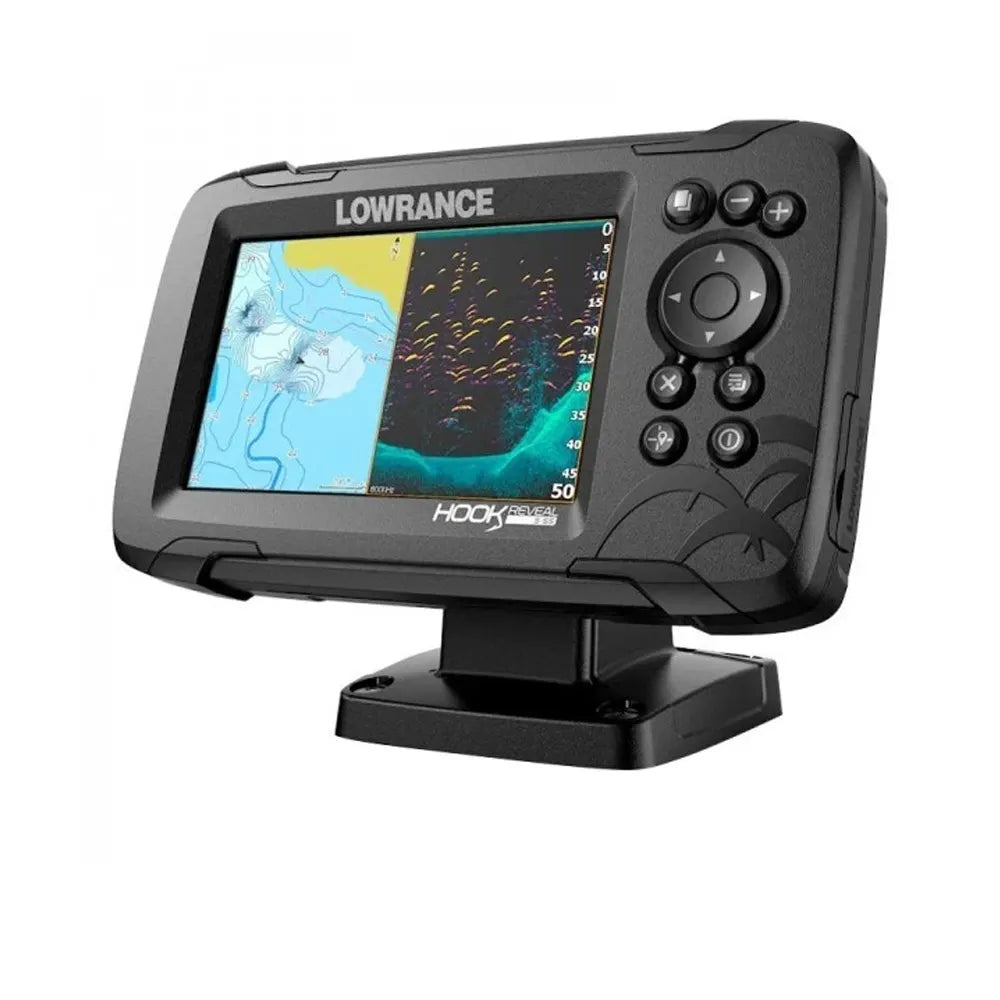

Lowrance HOOK Reveal 5 SplitShot
5-inch Fish Finder with SplitShot Transducer
Everything You Need in a Fish Finder... Without the Hefty Price Tag
From crisp imaging to accurate maps and an easy-to-use interface, the HOOK Reveal 5 gives first-time buyers unbeatable value.
FishReveal™ Imaging: Combines CHIRP sonar + DownScan so fish appear vividly against structure, minimizing guesswork.
Genesis Live Real-Time Mapping: Create and refine detailed underwater contours as you move, even in unmapped waters.
Autotuning Sonar: The unit self-adjusts gain, sensitivity, and noise filtering in changing conditions, so you spend time fishing, not tweaking settings.
SplitShot Transducer: High CHIRP + DownScan in one package, giving twice the sonar coverage of many units.
SolarMAX Display: Crisp, clear view in bright sunlight — no squinting when the glare hits.
Intuitive Controls & Menu: Quick, responsive keypad & streamlined menus make adjustments fast and easy even on the water.
The Lowrance HOOK Reveal 5 SplitShot makes finding and identifying fish easier than ever. The exclusive FishReveal™ technology blends CHIRP sonar target separation with DownScan Imaging™ detail, so fish stand out clearly on your screen, not hidden in structure or noise. With Autotuning Sonar, the HOOK Reveal 5 automatically adjusts to changing conditions, letting you focus on fishing instead of fine-tuning settings. A bright SolarMAX™ 5-inch display ensures crisp visibility even in direct sunlight, while preloaded U.S. Inland maps and Genesis Live real-time mapping help you locate productive fishing areas fast- whether on familiar lakes or uncharted waters.
Compact, reliable, and loaded with pro-level tools, the HOOK Reveal 5 SplitShot delivers clarity, convenience, and confidence on every trip.
FishReveal™ unites CHIRP sonar and DownScan imaging so fish light up on screen against underwater structure. You don’t just see vague shapes, you see fish, structure, and separation with incredible clarity.
Map As You Go

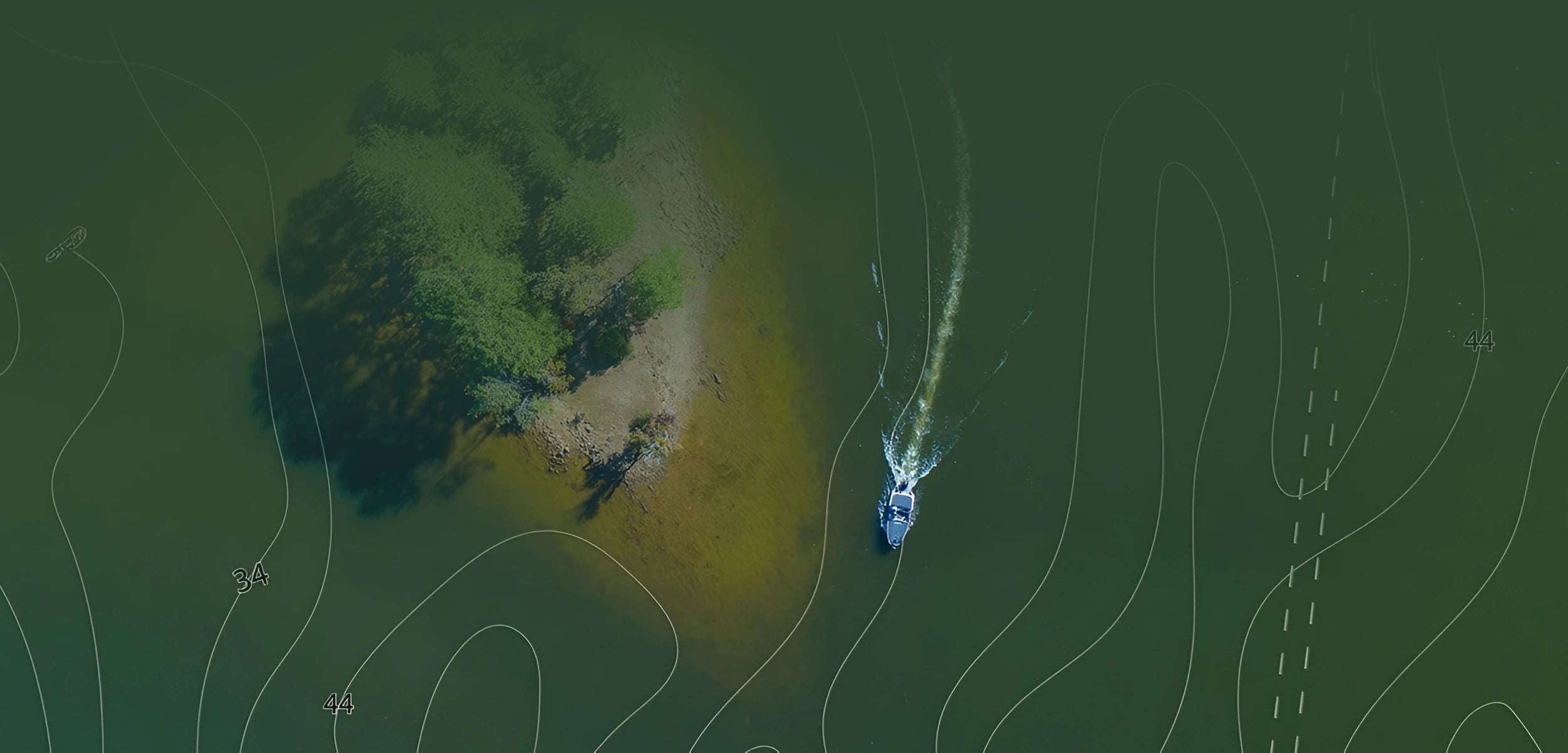

With Genesis Live Real-Time Mapping, you can build detailed underwater contour maps on the fly. No need to rely entirely on outdated charts- you can now chart unmapped waters in real time.
Smart Sonar, No Fuss
Autotuning sonar updates settings automatically, even as depth or conditions change, so you don’t have to adjust gain, sensitivity, or filters manually.
Coverage That Counts
The sleek SplitShot transducer combines High CHIRP and DownScan in one package, delivering double the sonar coverage, giving you both target detail and structure context in a single glance.
Sunlight-Ready Display
The SolarMAX display makes it easy to read your screen, even under harsh sunlight. No more battling screen glare, focus on watching what’s under the boat.
Designed for Anglers
With its intuitive keypad and user-friendly menu system, you can switch views, adjust gain, and tweak settings fast, while enjoying more of your time fishing out on the water.
| Specification | Details |
|---|---|
| Backlight Color | Pure White LED |
| Display Resolution | 800 x 480 |
| Screen Brightness | >1000 NITS |
| Viewing Angles | 80° top/bottom, 85° left/right |
| Connectivity | |
| SD Card Storage | Micro SD Card(32 gb Max) |
| Cartography | |
| Charts supported | C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+)C-MAP GenesisGenesis LiveC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners(No Photo/Satellite Overlay) |
| Approvals | |
| Approvals Compliance | FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM |
| Electrical | |
| Power Consumption max | 0.9A @ 13VDC with backlight on full |
| Power Consumption min | 0.9A @ 13VDC with backlight on full |
| Power Consumption typical | 0.9A @ 13VDC with backlight on full |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12v DC (10.8-17VDC) |
| Environment | |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Shock Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Waterproofrating | IPX7 with card door closed |
| GPS | |
| Correction | DGPS, WAAS |
| Time to First Fix | 30s |
| MFD | |
| Cartography included | C-Map US Inland Charting |
| GPS | 1 Hz GPSGLONASSWAASEGNOSMSAS |
| Sonar Compatibility | Integrated:CHIRPBroadbandDownScan |
| Waypoints, Routes, Tracks | 3000 Waypoints100 Routes100 Trails |
| Physical | |
| Compass Safe | 12" (300mm) |
| Dimensions W x H x D | 7.31" (185.7 mm) x 4.32" (109.8 mm) x 4.53" (115.0 mm) |
| Mounting Type | Gimbal BracketFront Dash Flush Mount |
| Weight | 0.90 lb. (0.41 kg) |
| Other | |
| Interface | Keypad:8-way directional keypadZoom +/-ExitEnter/MenuWaypoint/CursorPower/LightPages |
| Languages | Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano |
| Warranty Period | 1 Year + 4 additional years ofupgrade optionsTotaling 5 years |
HOOK2 4-5"/REVEAL5"/ CRUISE 5" BRACKET
HOOK² / Reveal & Cruise Power Cable (5/7/9/12)
Fuse and fuse holder
HOOK² / Reveal SplitShot Skimmer Transducer
HOOK² / Reveal 7/9/12 Corner Clips
Every HOOK Reveal 5 package is designed with sustainability in mind; we’re committed to protecting the waters we love while reducing environmental impact.
- Eco-friendly Packaging: Each unit is secured in molded pulp, a 100% recyclable and biodegradable material that replaces traditional Styrofoam.
- Hydropol® Protective Bag: Keeps your device pristine in transit and safely dissolves in boiling water, leaving no waste behind.
- Certified Paper Sources: All cardboard and paper come from responsibly managed, certified suppliers.
- Plastic Reduction: Single-use plastics have been replaced with recyclable paper or biodegradable alternatives.
- Sustainable Wrapping: Items are cushioned with kraft paper and tissue interleaf, eliminating the need for bubble wrap.
Lowrance® is committed to continually improving sustainable practices—because protecting our lakes,
rivers, and oceans means protecting our future.
Learn more at
lowrance.com/sustainability
.
SMARTER FISHING
DASH CAM AUTO SYNC
With the Garmin Drive app, you can manage and view footage from up to four dash cams³ at once giving you a complete, multi-angle view of any recorded incident
TWO LENSES WORK TOGETHER
This compact dual-lens dash cam uses two 180-degree lenses to deliver all-around coverage of the driver’s surroundings, both day and night.
Easily navigate through menus, select options and access key functions with HOOK Reveal’s simple menu layout and dedicated keypad.
Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® DISCOVER™ OnBoard inland and coastal charts. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high resolution, bathymetric 1-foot contours on 15,000+ U.S. Lakes and 9,400+ lakes in Canada. Comes as a separate card. Plus create custom ½-foot contour maps of your local lake or uncharted water – in real time - with Genesis Live.
Spend more time fishing and less time reworking your sonar settings with HOOK Reveal Autotuning sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change.
FAQ
Find quick answers about the Lowrance HOOK Reveal 5, including how to wire it, mapping compatibility, depth performance, and whether it’s the right fishfinder for your fishing style.
Quick Setup Guide
Download the file for Quick Setup
How long will it take to get my orders?
It depends on where you are. Orders processed here will take 5-7 business days to arrive. Overseas deliveries can take anywhere from 7-16 days. Delivery details will be provided in your confirmation email.
How deep can the Lowrance HOOK Reveal 5 detect fish, and will it work in deep lakes or coastal waters?
The Lowrance HOOK Reveal 5 can detect fish down to approximately 500 feet with its standard CHIRP sonar, and it is capable of operating in deep lakes and coastal waters. However, the clarity and detail of the images decrease in deeper water, especially past 100 feet.
Does Lowrance HOOK Reveal 5 include maps, and can I upgrade or add maps later?
Yes, the HOOK Reveal 5 comes with U.S. Inland map packs and supports chart upgrades and downloads. Plus, with Genesis Live you can create your own contour maps in real time as you fish.
Does the HOOK Reveal 5 Splitshot model support side-scan / Tripleshot?
No, this model, the HOOK Reveal 5 SplitShot, is outfitted with a SplitShot (down-scan + CHIRP sonar) transducer and does not support Tripleshot (side-scan).
Is the HOOK Reveal 5 a good choice for beginners and pros alike?
The HOOK Reveal 5 combines powerful sonar, sharp mapping, and real-world depth performance, giving new anglers pro-level capability at an entry-level price.
How do I wire the HOOK Reveal 5 to my boat battery?
The included power cable makes it simple:
- Red wire = Positive (+)
- Black wire = Negative (–)
Connect directly to a 12V DC supply (10.8–17V range). Always use the inline 5A fuse (recommended by Lowrance) to protect your unit from power surges.
What’s the power draw? Can I run it on a portable power supply?
The HOOK Reveal 5 draws ~0.9 amps at 13V with full brightness. Yes,you can run it on a 12V portable battery pack or bench power supply (just ensure correct polarity and fuse protection).
Have more questions?
You can contact us through our Contact page! We will be happy to assist you.
